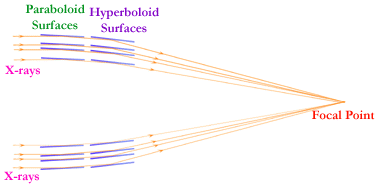

The Chandra telescope system consists of four pairs of mirrors and their support structure.
X-ray telescopes must be very different from optical telescopes. Because of their high-energy, X-ray photons penetrate into a mirror in much the same way that bullets slam into a wall. Likewise, just as bullets ricochet when they hit a wall at a grazing angle, so too will X-rays ricochet off mirrors.
The mirrors have to be exquisitely shaped and aligned nearly parallel to incoming X-rays. Thus they look more like glass barrels than the familiar dish shape of optical telescopes.
Imagine making the surface of the Earth so smooth that the highest mountain was less than two meters (78 inches) tall! On a much smaller scale, the scientists and engineers at Raytheon Optical Systems in Danbury, Connecticut accomplished an equivalent feat when they polished and ground the four pairs of Chandra mirrors to the smoothness of a few atoms.
Not to be outdone, the scientists and engineers at Optical Coating Laboratories, Inc., in Santa Rosa, California also surpassed expectations. After the mirrors were carefully moved to California via an air-ride moving van, they were painstakingly cleaned--to the equivalent of at most one speck of dust on an area the size of your computer screen. Then they were coated with the highly reflective rare metal, iridium.

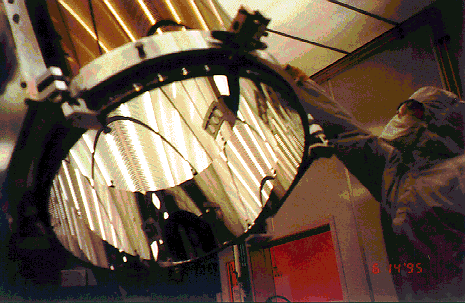

Coating the mirrors at Optical Coating Laboratories, Inc.
The successful grinding, polishing and coating of the Chandra mirrors were historic technical accomplishments. They are the smoothest and cleanest mirrors ever made.
The mirrors were moved again across the country--same moving van, same husband/wife driving team and three support vehicles--to Eastman Kodak Company in Rochester, New York, where they were assembled into a support structure called the high resolution mirror assembly and aligned with exquisite precision. The alignment of the mirrors from one end of the mirror assembly to the other (2.7 meters or 9 feet) is accurate to 1.3 micrometers (50 millionths of an inch) or about one fiftieth the width of a human hair! The successful completion of the high resolution mirror assembly at Eastman Kodak in September 1996, was one of the major accomplishments in the development of Chandra.
In November of 1996, the telescope system was put aboard a C5 military transport aircraft, flown to Huntsville, Alabama, and delivered to the Marshall Space Flight Center. There the telescope system and the scientific instruments were put through thousands of individual tests in an X-ray calibration facility especially constructed for this purpose by the Chandra support team at Marshall Space Flight Center. The tests, which were completed in May of 1997, showed that Chandra could produce X-ray images 25 times sharper than previous X-ray telescopes. The telescope's resolution is equivalent to being able to read the text of a newspaper from half a mile away.
After the telescope was calibrated, it was flown to TRW (now NGST) in Redondo Beach, California. There the telescope system, instruments, and spacecraft were put together and tested for space-worthiness. Finally, in 1999 the whole observatory was flown to Cape Canaveral and placed on the space shuttle for its last ride, into space.

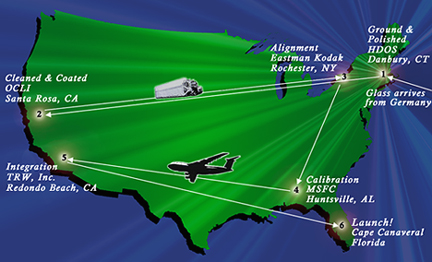

Travels of the Chandra Mirrors
